Power Grid Map

Portugal Power Grid Map

Substations, transmission lines and power plants across Portugal on one map, with the grid capacity network operators publish for substations and the companies behind every project.

Request a demoExplore the Power Grid Map

Coverage

What the map holds for Portugal

Figures from the Tera dataset as of 8 October 2026. The map also shows transmission lines, towers, transformers, switches and compensators by voltage level.

15,433
Substation records
2,092
Operating power plants
188
Plants in development
462
Substations with published headroom

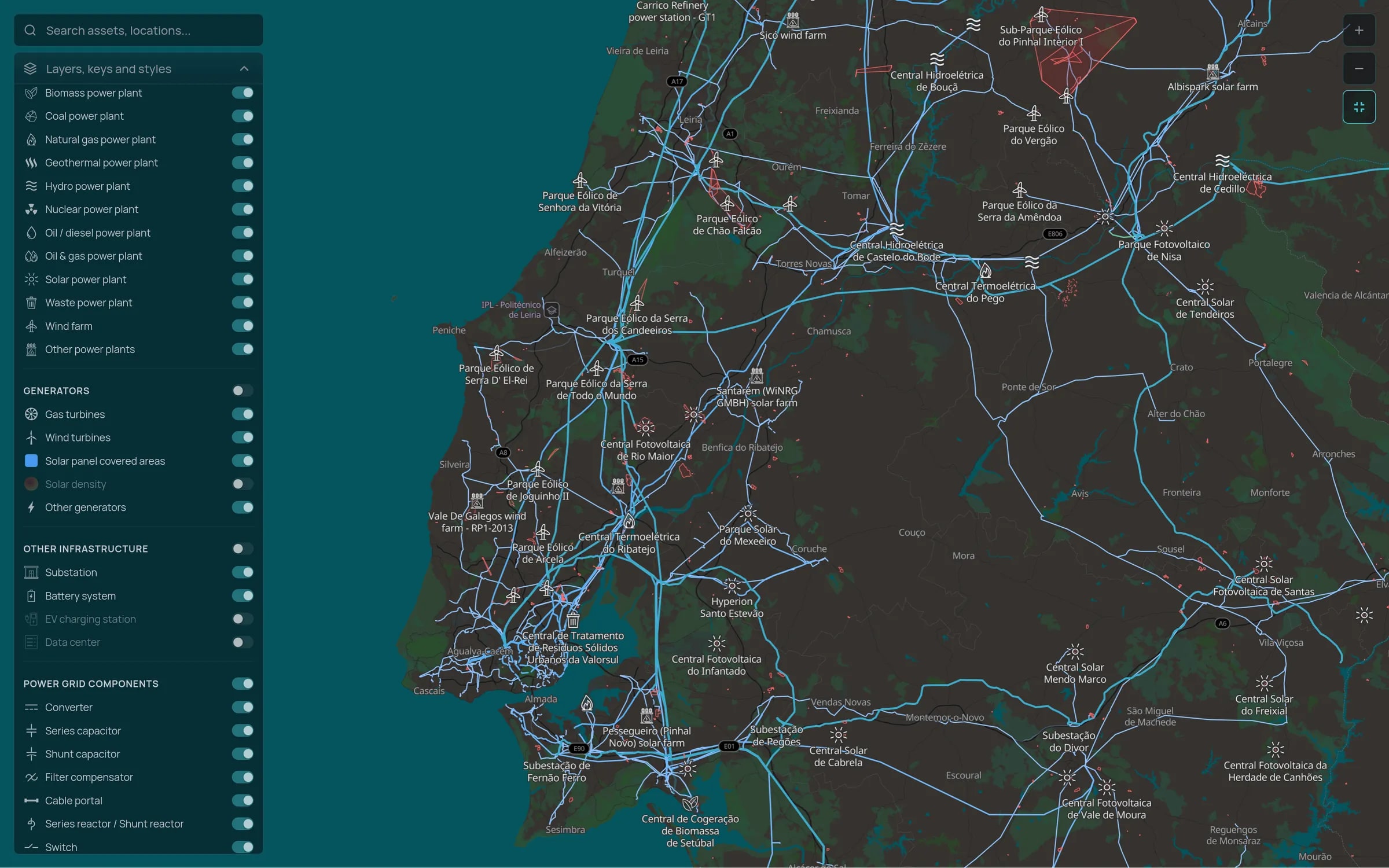

Tera power grid map of central Portugal from Leiria to Setúbal with the layers panel open: transmission lines and substations around Lisbon, and named wind farms, solar plants, hydro and thermal power stations with their site outlines
Central Portugal at asset level: wind, solar, hydro and thermal plants around the Lisbon grid

  • Published grid capacity

    Capacity figures published by network operators for substations, shown in each substation record.

  • Generation and pipeline

    Operating wind, hydro, solar and storage plants, and projects in development, each linked to its owners and developers.

  • Transmission and distribution

    High voltage lines and substations by voltage level, and the distribution substations beneath them.

Market context

How the grid works in Portugal

REN operates Portugal's transmission network and E-REDES runs most of the distribution grid. Renewables supply most of the country's electricity, led by wind and hydro, with solar growing fastest.

Grid capacity is the main limit on new solar and storage, and much of it is allocated through auctions and agreements with the network operator. Capacity data at substation level lets developers check where projects can still connect.

See Portugal on the map

Tell us which regions you are working on and we will walk you through the substations, lines and projects there.
